Deutschland (Germany)
Berlin
Berlin (Charlottenburg) – Universität der Künste - Aula (Große Orgel)

Hardenbergstraße 33, 10623 Berlin (Charlottenburg)                     in Google Maps anzeigen       view at Google Maps

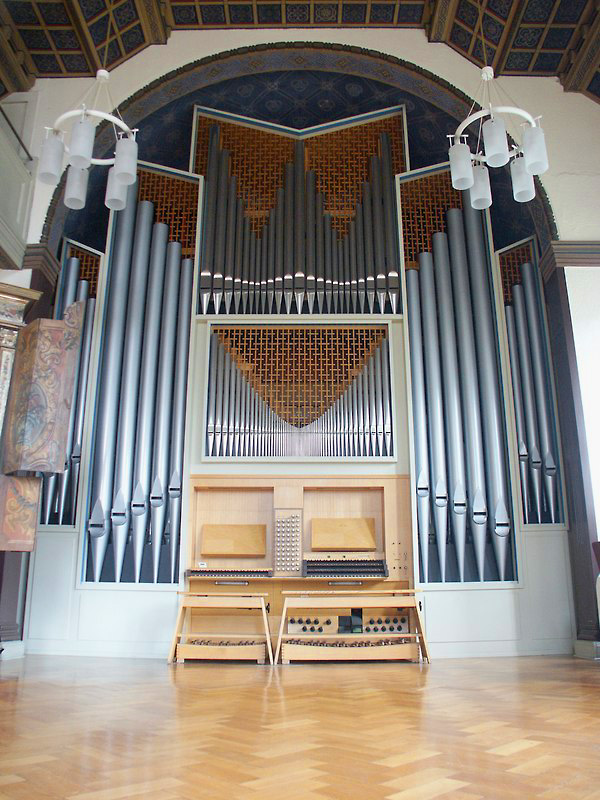

Berlin (Charlottenburg), Universität der Künste - Aula (Große Orgel), Orgel / organ
3 Manuale, 66 Ranks, 48 Register

1960 erbaut von Karl Schuke (D, Berlin)
1993 Umbau und Modernisierung durch Schuke
2018 Umdisponierung und Generalüberholung durch Schuke
Schleifladen mit mechanischer Spieltraktur und elektrischer Registertratkru mit 8x8 Setzerkombinationen, Remocard, Crescendowalze mit 1 festen und 3 freien Kombinationen
Die Orgel besitzt zwei eingebaute Spieltische (2. Spieltisch: nur Hauptwerk + Pedal)
Die UDK verfügt über mehrere Orgeln
Details und Disposition der Orgel / specification and stoplist of this organ
Direkte Links / direct links:   Fotos / pictures


Große Orgel - aktuelle Disposition
x
I. Hauptwerk C-a''' 20 (11)   II. Positiv C-a''' 14 (11)   III. Schwellwerk C-a''' 18 (14)   Pedal C-g' 14 (12)
Bourdon 16   Gedackt 8   Gambe 16   Principal 16
Principal 8   Quintade 8   Diapason 8   Subbass 16
Flöte 8   Principal 4   Cor de nuit 8   Quinte 10 2/3
Gambe 8   Flaut duès 4   Gambe 8   Octave 8
Oktave 4   Quinte 2 2/3   Schwebung 8   Gedackt 8
Nachthorn 4   Flöte 2   Flûte octaviante 4   Cello 8
Octave 2   Terz 1 3/5   Fugara 4   Choralbass 4
Cornett V ab f   Larigot 1 1/3   Quinte 2 2/3   Weitprincipal 2
Mixtur IV-VI 2   Scharff IV   Flautino 2   Hintersatz III
Trompete 8   Basson 8 *   Tierce 1 3/5   Posaune 16
Trompete 4   Dulcian 8   Fourniture V 2   Trompete 8
  + Tremulant einstellbar   Trompette harmonique 8   Schalmey 4
II-I, III-I mech.     Hautbois 8
III-I elektr.   III-II   Voix humaine 8   I-P, II-P, III-P
    + Schweller
  *) vorbereitet   + Tremulant einstellbar


Große Orgel - Disposition 1993
x
I. Hauptwerk 20 (11)   II. Positiv 16 (11)   III. Schwellwerk 20 (14)   Pedal 16 (12)
Pommer 16   Gedackt 8   Gambe 16   Principal 16
Principal 8   Quintade 8   Holzprincipal 8   Subbass 16
Rohrflöte 8   Principal 4   Hohlflöte 8   Quinte 10 2/3
Octave 4   Flaut duès 4   Salicional 8   Octave 8
Nachthorn 4   Quinte 2 2/3   Schwebung 8   Gedackt 8
Quinte 2 2/3   Feldpfeife 2   Gedackt 4   Choralbass 4
Octave 2   Terz 1 3/5   Fugara 4   Pommer 4
Cornett V ab f   Sifflöte 1   Gemshorn 2   Weitprincipal 2
Mixtur IV-VI 2   Scharff IV-VI 1 1/3   Sesquialtera II   Hintersatz V
Trompete 8   Cromorne 16   Oberton II 1 1/7   Posaune 16
Trompete 4   Vox humana 8   Fourniture V 2   Trompete 8
  + Tremulant einstellbar   Basson 16   Schalmey 4
    Trompette harmonique 8
    Hautbois 8
    + Schweller
    + Tremulant einstellbar


Quelle (source): UDK

Anmerkung: Die roten Zahlen neben den Manualbezeichnungen geben die Anzahl der Ranks (in Klammern: Register) dieses Teilwerks an (zur Zählweise und Sortierung siehe Anmerkungen).
Remark: The red digits beneath the devision descriptions show the total ranks (in brackets: voices / registers) of the division (as to counting and sequence see annotations).
